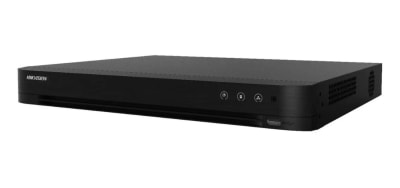

DVR PentaHibrido Hikvision 4CH + 1IP 5MP LITE H265+ ACUSENSE
$ 59.890
DVR AcuSense de 4 canales 1080p 1U H.265 Hikvision
- 4 canales y 1 HDD 1U AcuSense DVR ( No Incluido )
- Proporciona información detallada con detección de rostros.
- Reducción de falsas alarmas mediante la clasificación de objetivos humanos y de vehículos basada en el aprendizaje profundo
- Tecnología de compresión eficiente H.265 pro +
- Capacidad de codificación de hasta 1080p a 15 fps
- Entrada de 5 señales adaptativamente (HDTVI / AHD / CVI / CVBS / IP)
- Se pueden conectar hasta 6 camaras de red.
Video/Audio Output
| CVBS Output: | 1-ch. BNC (1.0 Vp-p. 75 Ω). resolution: PAL: 704 x 576. NTSC: 704 x 480 | |
| HDMI/VGA Output: | 1920 x 1080 / 60 Hz.1280 x 1024 / 60 Hz. 1280 x 720 / 60 Hz. 1024 x 768 / 60 Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF | |
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear. 1kΩ) | |
| Synchronous Playback: | 4-ch |
Network management
| Remote connections: | 32 | |
| Network protocols: | TCP/IP. PPPoE. DHCP. Hik-Connect. DNS. DDNS. NTP. SADP. NFS. iSCSI. UPnP‚. HTTPS. ONVIF |
Hard Disk Driver
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 10 TB capacity for each disk |
External Interface
| Network Interface: | 1 RJ45 10M/100M adaptive Ethernet Interface | |
| Serial Interface: | 1; standard RS-485 serial interface. half-duplex |
General
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 18 W | |
| Working Temperature: | -10 ºC to +55 ºC (+14 ºF to +131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch) | |
| Weight: | ≤ 1.16 kg (2.6 lb) |
Video/Audio Input
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog Video Input: | 4-ch | |
| Supported camera types: | HDTVI input:3 MP. 1080p30. 1080p@25 fps. 720p@60 fps. 720p@50 fps. 720p@30 fps. 720p@25 fps Note: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S. for channel 1/2 of iDS-7208HQHI-M1/S. and for channel 1/2/3/4 of iDS-7216HQHI-M1/S. AHD input: 4 MP. 1080p25. 1080p30. 720p25. 720p30 HDCVI input :1080p25. 1080p30. 720p25. 720p30 CVBS input: PAL/NTSC | |
| IP Video Input: | up to 6-ch | |
| IP Video Input Resolution: | Up to 6 MP resolution | |
| Video Input Interface: | BNC (1.0 Vp-p. 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p. 1 kΩ) |
